Verbatim Tefabloc TPE

1.75mm 500g – White


Overview

Tefabloc TPE is a high performance flexible filament, offering excellent low temperature properties and a high level of hardness stability across a wide temperature range, making it particularly suited for outdoor applications. Tefabloc TPE is resistant to oil, grease, abrasion and solvents and suitable for applications requiring flexibility such as window seals, grips, holders, plugs, robot parts and protective components.

Verbatim Tefabloc TPE 1.75mm 500g – White
Verbatim Tefabloc TPE 1.75mm 500g – White
Product Details

  • High performance thermoplastic polyester elastomer (TPE) for material extrusion
  • Highly flexible
  • Resistant to oil, grease, abrasion and solvents
  • Good shape retention
  • Good weather resistance
  • Main applications: Flexible items such as brackets, insoles for shoes, hoses, bracelets, insulation, balls, wheels etc.

Specifications
Product Specifications
Diameter accuracy: 1.75 ± 0.05 mm
Material net weight: 0.5 kg
Filament length: 190 m
Filament Thickness: 1.75 mm
Melt temperature: 175 to 195 °C
Melt Flow Rate @ 230 °C, 21.1N: 45 g/(10 minutes)
Density: 1.09 g/cm3
Durometer Hardness: Shore A85
Tensile yield: 14 MPa
Tensile elongation: 990 %
Spool Dimensions
Spool diameter:200 mm
Spool depth:72 mm
Hub diameter:102 mm
Hub hole diameter:51 mm

Recommended Printer Set Up
Extrusion temperature:230±10 °C
Bed temperature:60 °C
Printing speed:20 mm/s


* Closest pantone colour


Models
Part Number Filament diameter Filament weight Colour PANTONE® ref.
55512 2.85 mm 500g White White Process*
55513 2.85 mm 500g Black Black Process*
55510 1.75 mm 500g White White Process*
55511 1.75 mm 500g Black Black Process*
Downloads
55510 1.75mm White Flat

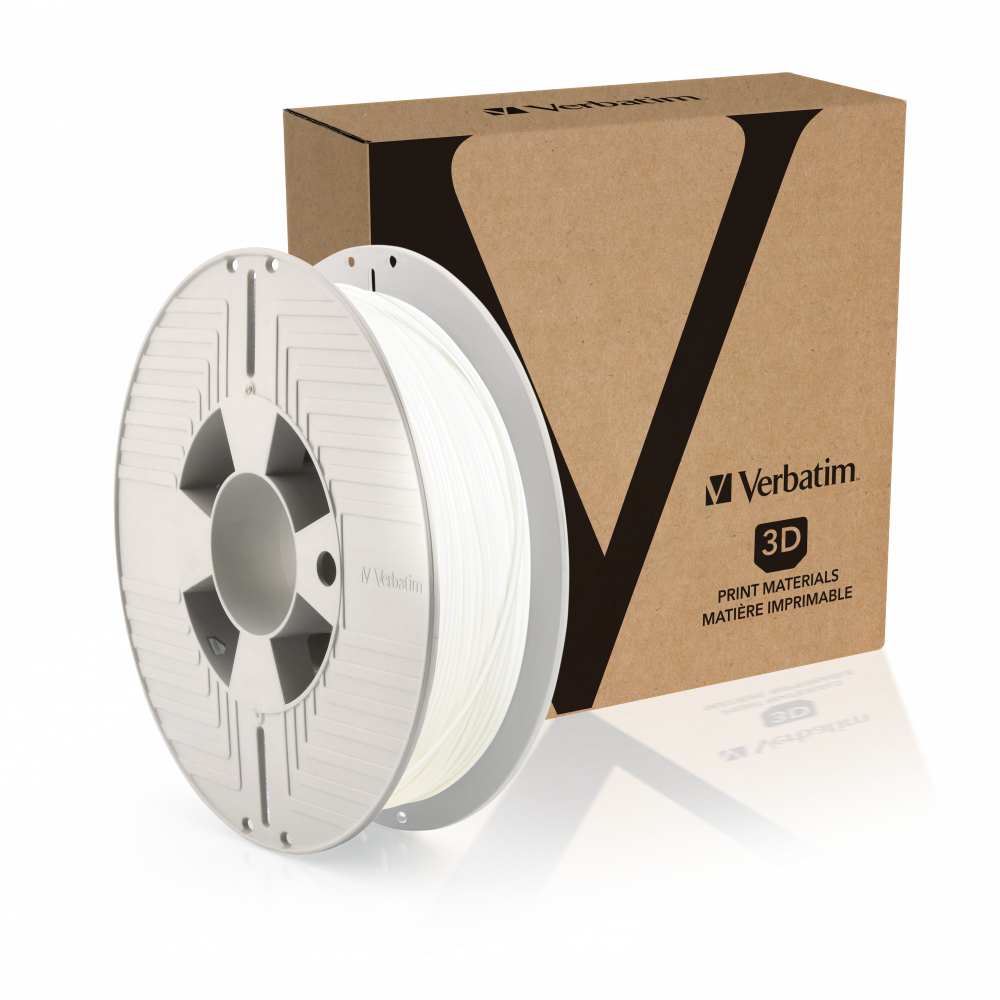

55510 1.75mm White Angled+Product

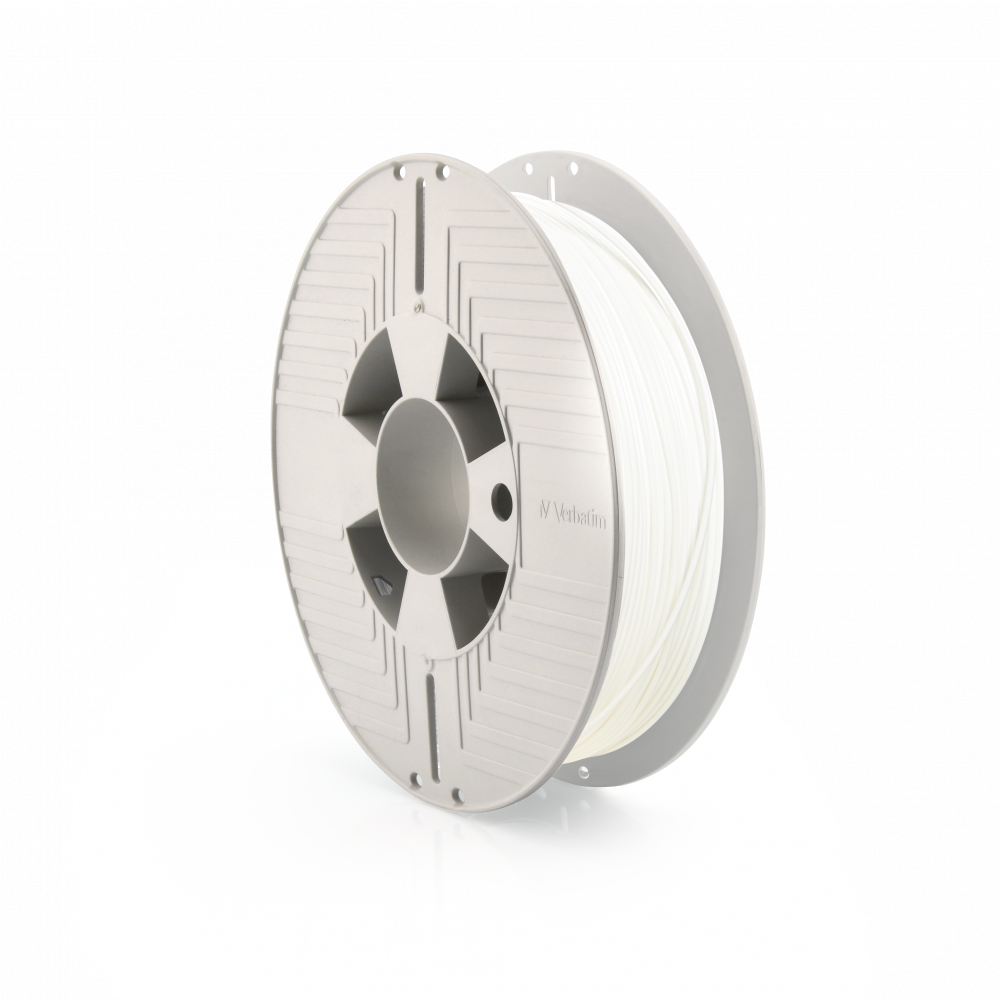

55510 1.75mm White Angled
➤
