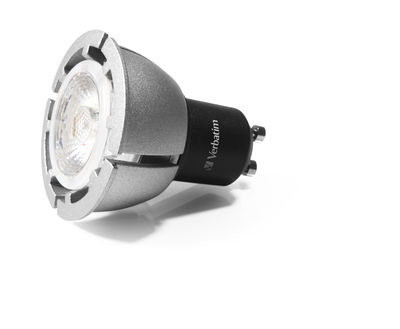

Verbatim LED PAR16 GU10 7.3W This product is no longer available Product No: 52235
Features
- GU10 Socket
- 220 – 240V
- 35,000 hours Lifetime
- Dimmable
- 88% Energy Saving
- Luminous Flux 90° Cone: 420 lm
- Equivalent to 60W incandescent bulb
The spot PAR16 GU10 is a great replacement for standard mains voltage halogen lamps. It is energy efficient and has a built-in temperature management control system that guarantees long lifetime. Verbatim LED spot PAR16 GU10 saves up to 91% energy compared to conventional lighting.
The unique heat sink designed by parent company Mitsubishi Chemical Corporation maximizes heat dissipation.
The LED PAR16 GU10 uses a combination of COB (Chip On Board) LED technology and diamond cut optics that create a superb light within a defined beam without multiple shadows and unpleasant glare.
To find out more about Mitsubishi heatsink technology for optimal thermal management.
Application
-
PAR16 GU10 LEDs are favoured for directional lighting and are particularly suitable for working areas as well as for mood lighting. They offer flexibility of mounting arrangements where the space is limited.
Ideal for spotlighting and general lighting in public areas such as restaurants, reception, corridors, lobbies, conference rooms and other areas where the light is used for long periods of time.
Specifications

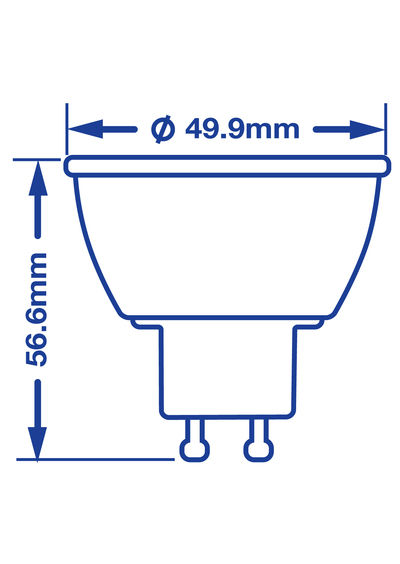

| Product Number | 52235 | Diameter (mm) | 49.9 | |
| Lamp Socket | GU10 | Weight (g) | 65 | |
| Wattage (W) | 7.3 | Luminous Flux 90° Cone (lm) | 420 | |
| Wattage Equivalent (W) | 60 | CRI | 80 | |
| Voltage (V) | 220 – 240 V | CCT (K) | 3000 | |
| Dimmable | yes | Lumious intensity (cd) | 800 | |
| Instant-on | yes | Beam Angle (°) | 36 | |
| Power Factor | 0.9 | Luminous Efficacy (lm/W) | 58 | |
| Operating Frequency (Hz) | 50-60 | Lifetime (h) | 35,000 | |
| Current (mA) | 35 | Switching Cycle | 60,000 | |
| Length (mm) | 56.6 | Energy Efficiency Class | A |
